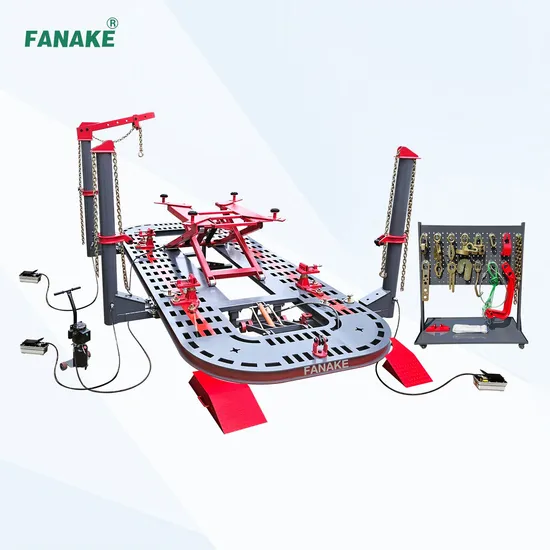

Widely Favorite Vehicle Frame Machine CE Certified Car Body Repair Equipment

Basic Info.

Type	Frame-type
Max. Lifting Capacity	3.5T
Certification	CE, ISO
Standard	Standard
Condition	New
Bluetooth	Not Support Bluetooth
Platform Length	5600mm
Paltform Width	2200mm
Material	Manganese Steel
Platform Hight	560mm
Tower Pulling Capacity	10 Ton
Max Lift Capacity	3.5ton
Tower Working Range	360 Degrees
Whole Weight	2 Ton
Transport Package	Standard Export Package
Specification	5600*2200*560mm
Trademark	FANAKE
Origin	China
HS Code	8479819000
Production Capacity	10000 Pieces/Year

Product Description

AUTO BODY FRAME MACHINE

SPECIFICATION

DETAILS SHOW



MAIN FEATURES
1. The platform is Manganese plate. 2. Designed with the striation structure, no dead point in pulling with this platform and the tower can be moved and fixed at any point. 3. The hydraulic towers can be moved freely alongside the platform and turn 360°as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness. 4. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tools accessories enable to do any misshape correction work. 5. Hydraulic system with good design has powerful driving force, long life and low failure rate. 6. Major clamps fix the auto quickly, firmly and accurately. 7. Applying parallel-connect synchronous hydraulic cylinder with high synchronous precision; the integral mechanical lock is processed one-time.

OPTIONAL TOOLS
Various types of clamps, shock plates, pull-down devices, single chain harrows, chain connectors, deep draw hooks, chains, wrenches, socket wrenches, nylon straps, wire ropes, hand tensioner, electric puller, 2D measuring systems, pneumatic pumps, chain protectors, etc.

PACKAGE &DELIVERY Standard export packing to ensure that the goods are in good condition during transportation


COMPANY
CUSTOMER VISITING


RELATED PRODUCTS

FAQ

Q: Why Choose Us?
A:We have more than ten years of automotive maintenance equipment research and development and production experience. Products sell well at home and around the world.
With a wide range of products, customers can buy all the equipment, tools and so on about automobile maintenance to meet the needs of customers one-stop shopping.

Q:What is the lead time for your products?
A: The lead time for our products varies depending on the product type and specifications, as well as the quantity of your order. Please contact us for the specific lead time for your order.

Q:Can you provide OEM or ODM services?
A: Yes, we can provide OEM or ODM services according to customer needs. If you need to order OEM or ODM products, please contact us and we will provide you with a quote and delivery time based on your specific requirements.

Q:Do you have a minimum order amount?
A: Yes, we have a minimum order amount for our products. The specific minimum order amount depends on the product type and specifications. Please contact us to discuss the minimum order amount for your order.

Q:What is your warranty policy for your products?
A: We offer a warranty policy for our products. The specific warranty period and coverage depends on the product type and specifications. Please contact us to discuss the warranty policy for your order.

Q:Can you provide technical support for your products?
A: Yes, we can provide technical support for our products. Please contact us for technical support or any other questions you may have about our products. We are always here to help.

Q:Can I have a visit to your factory?
A: Sure, welcome to visit us. Our company is located in Yantai of Shandong Province.

Workbench length	5600mm
Workbench width	2200mm
Workbench height	560mm
Gas source pressure requirements	0.8MPA
Pull tower traction maximum pull force	100KN
Maximum pressure of hydraulic system	70MPA
Pull tower working area	360°
Load-bearing capacity	3500kg

The median lifting device can lift the vehicle to a maximum amplitude, with a lifting height of 1400mm, a rubber pad height of 120mm, and a thickness of 30mm.

Equipped with rubber pads to enhance friction.

The secondary lifting device can play a good role in small lifting, making it easy to lift.

The whole plate of manganese steel on the beam surface is laser cut, with high hardness, strong compressive resistance, super tensile force, and no pressure to lift.

The main pull tower is full of power and has super tensile capacity. It can move 360 degrees along the platform. It has an embedded tower column top rod and is equipped with an oblique crane.

The visor is made of manganese steel, the plate is thickened, with a thickness of 25mm, high-frequency quenching of the jaws, and innovative oil injection methods.
