Basic Info.
| Model NO. | M-10 |
| Standard | Standard |
| Condition | New |
| Bluetooth | Not Support Bluetooth |
| Deck Width | 2200mm |
| Deck Length | 5200mm |
| Wight | 1900kg |
| Lifting Capacit | 3500kg |
| Hydraulic Pressure | 70MPa(10000psi) |
| Pneumatic Pressure | 0.8MPa |
| Hydraulic Tower Per Tower | 10ton |
| Transport Package | Carton and Wooden |
| Trademark | Brand |
| Origin | China |
| HS Code | 8479819000 |
| Production Capacity | 1000per Year |
Product Description

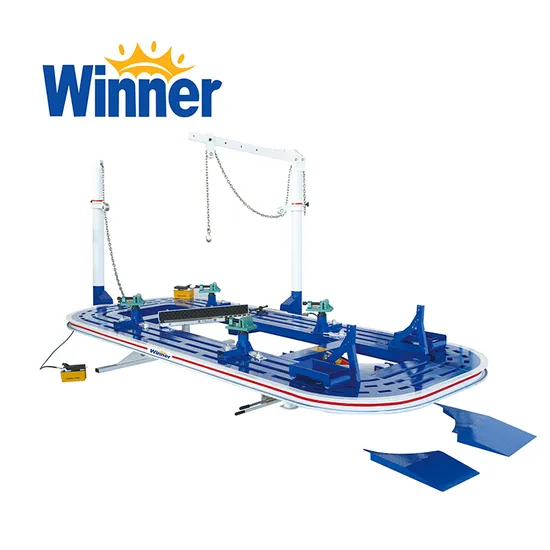

M-10 Car Chassis Straightening Bench Frame Alignment Machine
Description:
1. 86'' /2200mm wide deck is perfect for light trucks, SUV or Pickups, etc full-frame vehicles.
2.Square Tube/I-steel structure desk makes the machine strong but economic.
3.True 3600 pulling capability.
4.3000kg/6614 lbs, 3500kg/7716 lbs lift capacity for more options
5.Heavy duty towers for strong pulling capacity.
Company Information
Contact us
Yantai Winner Electronic & Mechanical Technology Co., Ltd
Website: lillian77.en.made-in-china.com
Lillian Lee
Product Description
| Model | M-10 |
| Type | Single side tilt |
| Platform Length | 5200mm |
| Platform Width | 2100mm |
| Platform Height | 500mm |
| Tower Pulling Capacity | 95 KN/10 Tons |
| Max. Lifting Capacity | 3000KG |
| Pulling Tower Working Range | 3600 |
| Hydraulic Pressure | 70MPa(10000psi) |
| Pneumatic Pressure | 0.8MPa |
| Total Weight | 1700KG |
| Delivery time | 7 days after receiving the deposit |
| Warranty | 13 months after delivery |
